Understanding On-Grid vs Off-Grid Solar and Hybrid
While switching to renewable energy could be one of the smartest things you can do as a property owner, there are plenty of complex decisions that may seem overwhelming.
Deciding which of three different system architectures will work best for your property – from on-grid to off-grid and everything in-between (hybrid) – depends on various factors including the specific power needs of your property and local geographical requirements. Selecting the right architectural design early on is important. It can prevent expensive equipment upgrades down the road.

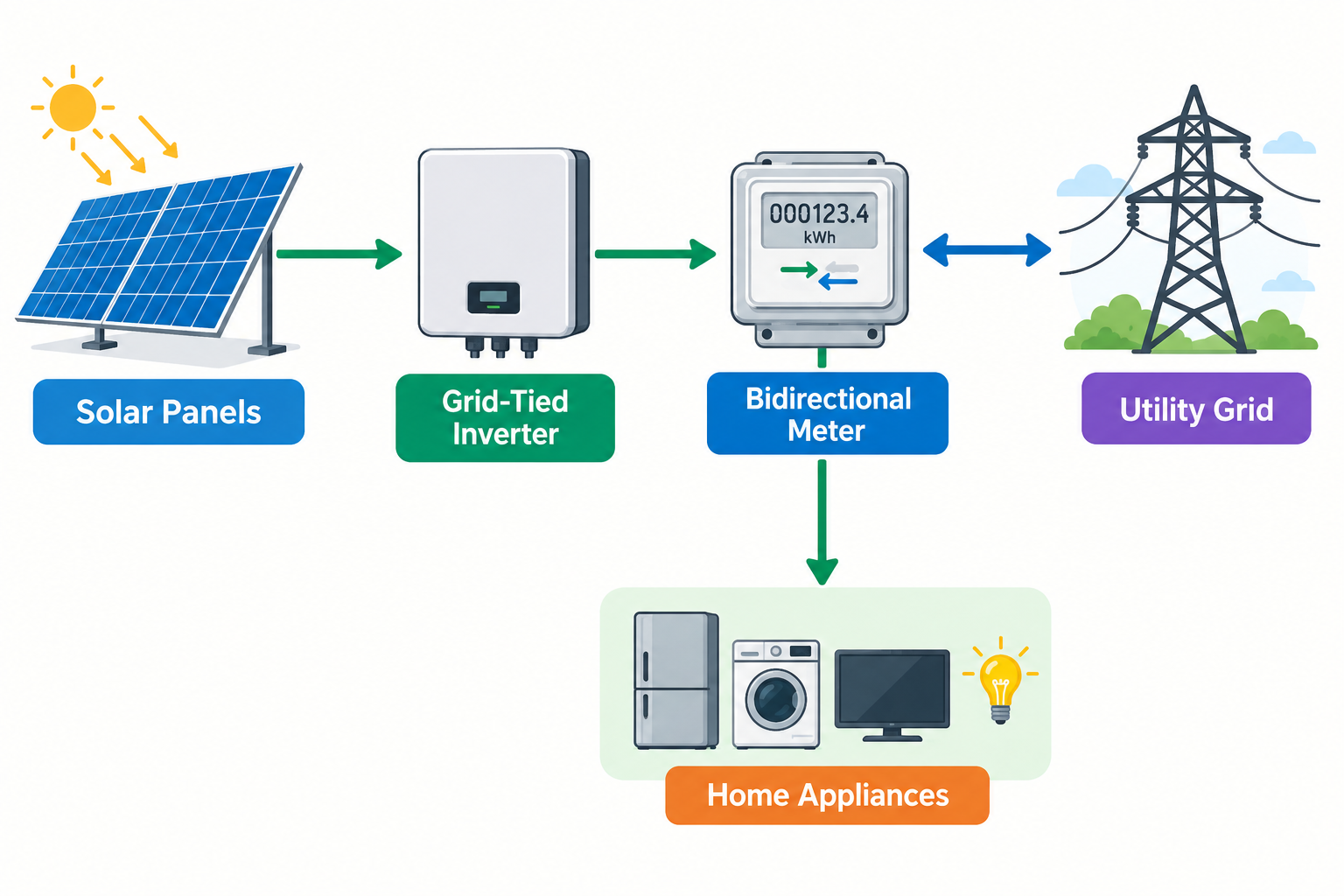

What is an On-Grid Solar System?
On-grid refers to an installation that directly connects to your local utility power grid.
The system runs seamlessly alongside your household’s existing electrical connection – producing solar electricity for you to use during periods of peak sunlight while also drawing extra energy off of the utility whenever its output dwindles (such as at night or during overcast weather).
Key Components
- Solar Panels: Capture sunlight and generate direct current (DC) electricity.
- Grid-Tied Inverter: Converts DC power into alternating current (AC) electricity synchronized with grid voltage.
- Bidirectional Meter: Tracks energy consumed from the grid versus excess electricity exported back.
Pros
- Lowest upfront installation cost because no expensive battery backup systems are required.
- Net metering benefits allow homeowners to sell surplus solar power back to the local power company (CERC).
- High operational efficiency and rapid return on investment over the system lifetime.
Cons
- Automatically shuts down during power outages due to anti-islanding safety protocols designed to protect utility line workers.
- Complete reliance on public utility stability during low production periods.

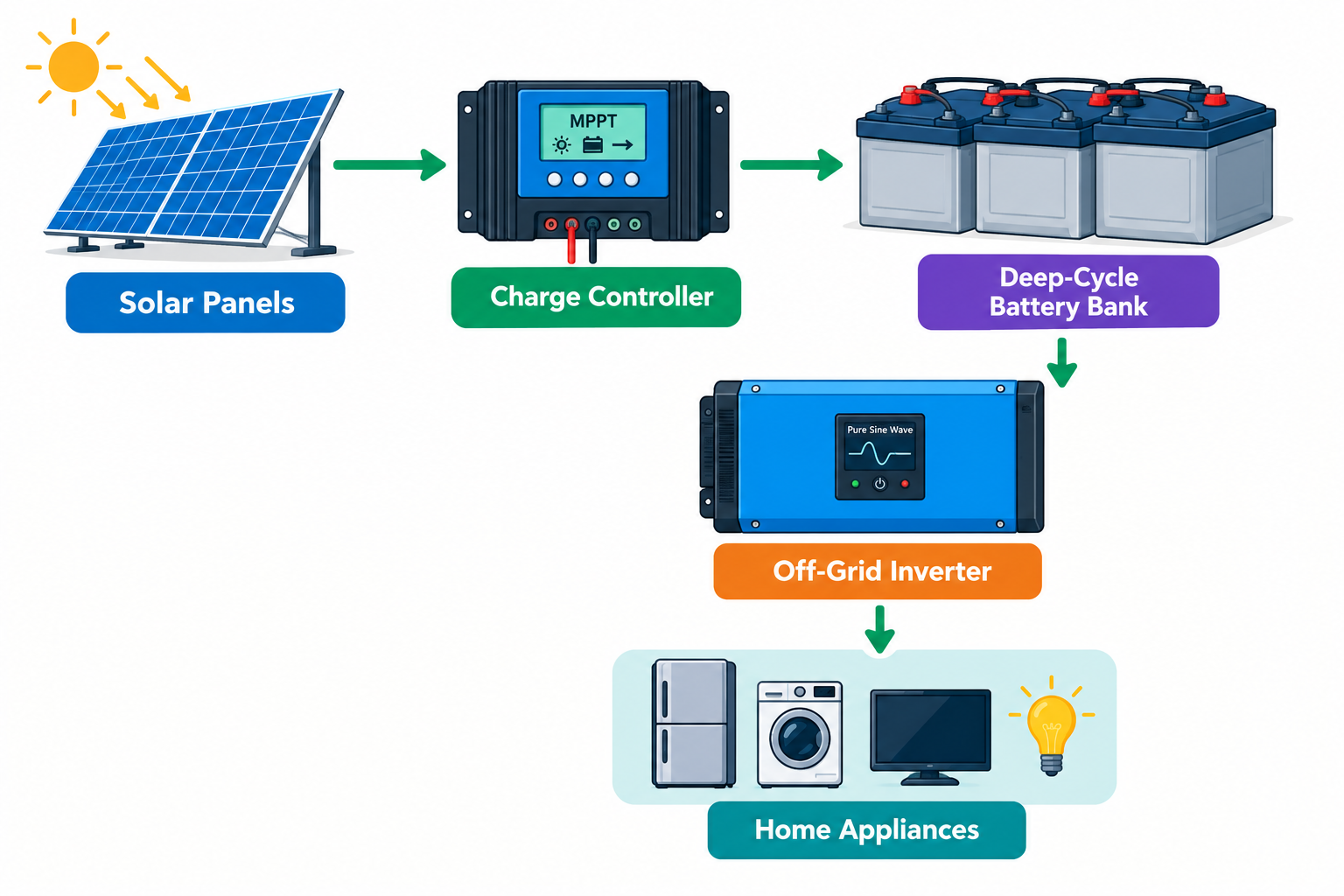

What is an Off-Grid Solar System?
An Off-Grid Solar Power Setup functions as an entirely self-contained power plant that’s totally disconnected from any electrical grid network.
This system will generate, store, and manage all of your household power on site, which makes this system perfect if you have a cabin in the country, a rural homestead, or live somewhere where running utility lines to your home would be cost prohibitive.
Key Components
- Solar Panels: Generate DC electricity from available sunlight.
- Charge Controller: Regulates incoming voltage and current to prevent battery overcharging.
- Deep-Cycle Battery Bank: Stores excess energy for continuous overnight and cloudy day power supply.
- Off-Grid Inverter: Converts stored DC battery power into usable AC electricity for home appliances.
Pros
- 100% energy independence without monthly utility bills or rate hikes.
- Provides reliable power in remote areas far away from public utility infrastructure.
- Completely immune to widespread utility grid blackouts and grid disruptions.
Cons
- Significantly higher initial setup costs due to large capacity battery banks.
- Demands ongoing energy management conscious consumption habits and periodic battery maintenance.

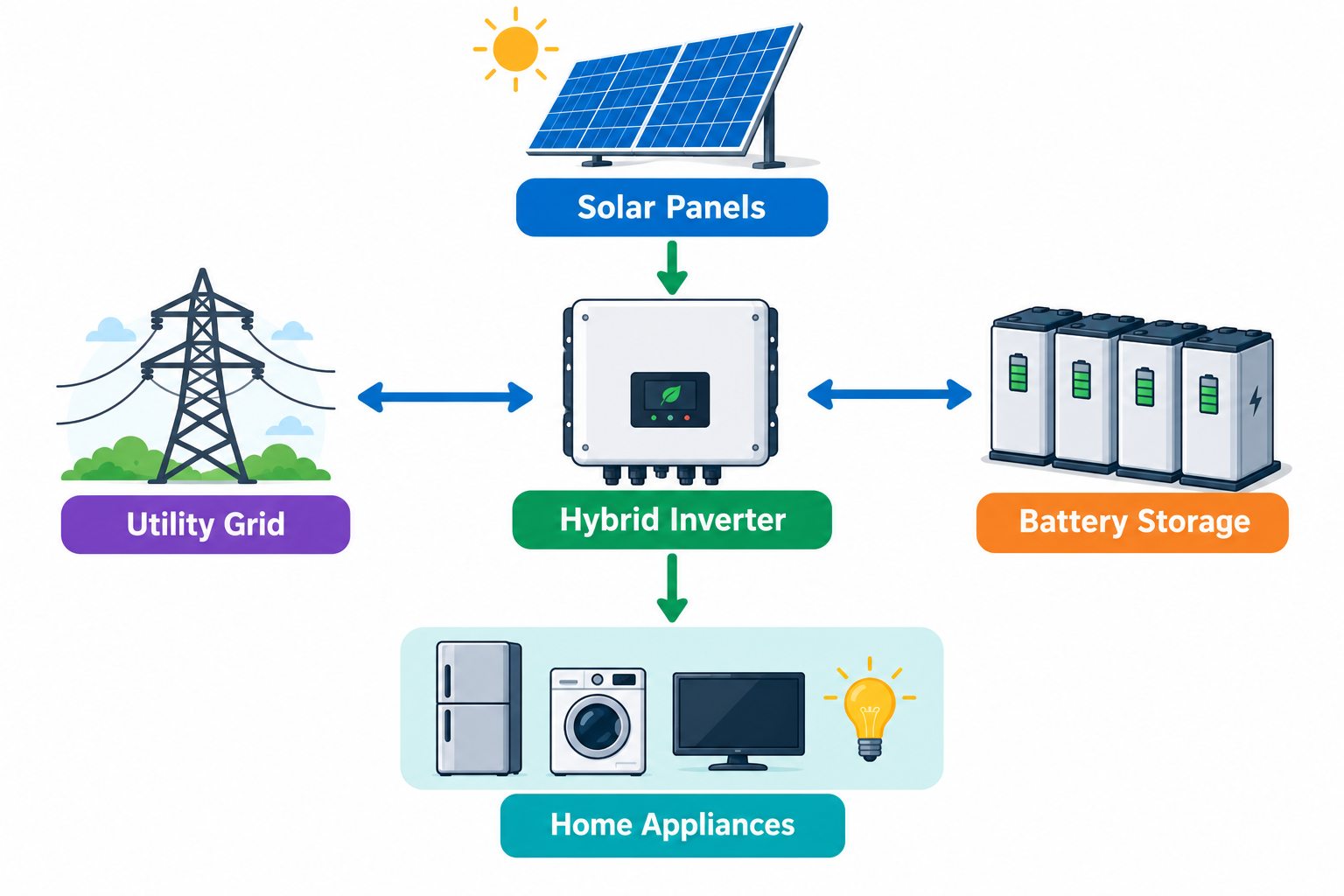

What is a Hybrid Solar System?
A hybrid solar system combines the real-time reliability of a grid connection with the emergency protection of local battery energy storage. It offers ultimate operational flexibility by prioritising solar usage, storing surplus generation in batteries, and using grid power only as a final backup option.
Key Components
- Solar Panels: Collect solar radiation and produce raw DC electricity.
- Hybrid Inverter: Manages multi-directional energy flow between panels, batteries, loads, and the utility grid.
- Battery Storage: Keeps emergency reserve power ready for sudden blackout events.
- Grid Connection: Acts as a secondary backup when both solar and battery reserves drop low.
Pros
- Provides immediate power backup during emergency electrical blackouts.
- Maximises self-consumption by storing daytime energy for peak evening household hours.
- Enables Time-of-Use load shifting to significantly reduce high peak rate electricity costs.
Cons
- Noticeably higher initial investment than basic grid-tied configurations.
- Requires a slightly more complex system installation process and regular performance monitoring.
Discover the Top 10 Best Solar Panels in India in our detailed blog.
Side-by-Side Comparison: On-Grid vs Off-Grid vs Hybrid
| Comparison Criteria | On-Grid Solar | Off-Grid Solar | Hybrid Solar |
|---|---|---|---|
| Grid Connection | Connected to utility grid | Completely disconnected | Connected to utility grid |
| Battery Requirement | Not required | Essential for daily function | Required for backup power |
| Power Outage Protection | No (system shuts off) | Yes (continuous supply) | Yes (continuous supply) |
| Initial Cost / ROI | Lowest cost / Fast ROI | Highest initial cost / Longest ROI | Moderate to high cost / Balanced ROI |
| Best Suited For | Urban and suburban areas | Remote locations and cabins | Areas with unreliable power or high rates |
How to Choose the Best Solar System for Your Location and Needs
Finding the right system balance depends on evaluating your local electrical infrastructure, current energy usage patterns, and financial goals.
Solar panels come in different kinds and quality. Learn about these and the best one for you in our Types of Solar Panels Buyer’s Guide.
When to Choose On-Grid
Go for an On-Grid System if you are living in an Urban/Suburban neighborhood with access to a reliable Public Power Grid. If your local utility provider supports favorable Net Metering incentives, then go for an on-grid solar system as it provides the fastest payback period & low barrier to entry.
When to Choose Off-Grid
Ideal for those looking to build in a remote area without easy access to the grid, or where installing grid connections would be extremely costly. Perfect for anyone prioritizing complete energy self-sufficiency over minimizing up-front equipment investment costs.
When to Choose Hybrid
Select a hybrid setup if your neighborhood experiences frequent blackout risks or if your utility charges steep Time-of-Use rates. It delivers peace of mind through automatic power backup while retaining grid access as a safety net.
To get the best of the Solar Rooftop Scheme in India along with subsidies and benefits, read our step-by-step PM Surya Ghar Scheme Guide or learn How to Apply Solar Subsidy in J&K.
Frequently Asked Questions (FAQs)
Final Verdict from HydroSolar
Choosing between on-grid, off-grid, and hybrid energy systems comes down to balancing installation budgets, local grid stability, and your desire for energy security.
If you want quick ROI and live on a stable electrical grid, go with on-grid. If you live off the grid or want total independence, go fully off-grid. For the best of both worlds, choose a hybrid configuration to keep your lights on no matter what happens to the public utility grid.
